SMART X96-1

EasyClick Plug & Play Metering

Three Phase EasyClick MID

Product videos
SMART X96-1

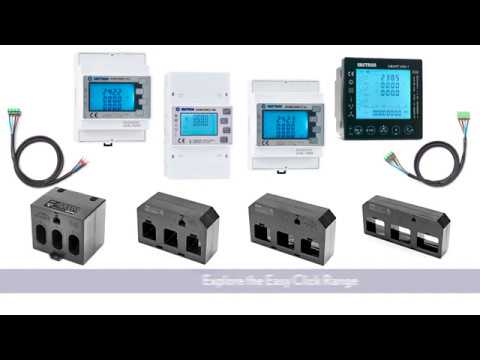

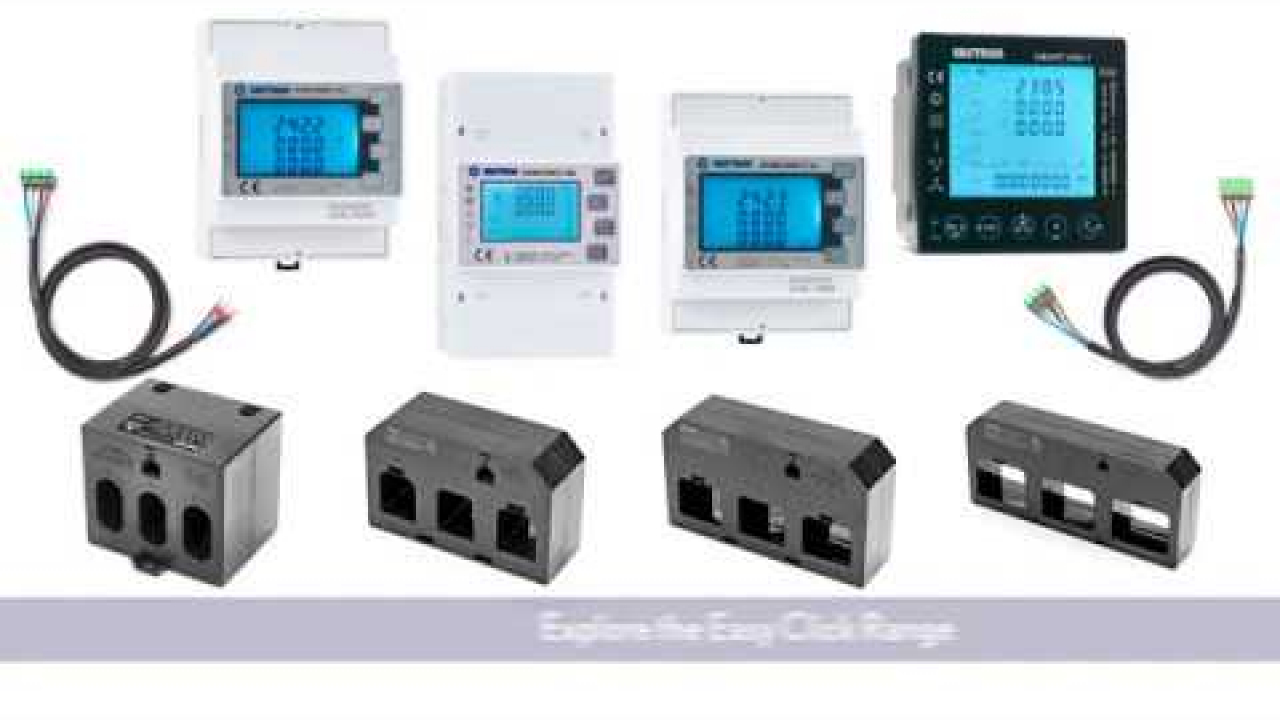

How to set up and install the SMART X96-1 Easy Click meter

Features
  • MID Certified to Class C (0.5%) accuracy
  • EasyClick technology for plug in current transformer and mains voltage connection
  • Elimination of wiring errors & labour saving
  • Designed and tested in the UK by an independent laboratory
  • Individual harmonics up to 63rd level (Class 1)
  • Internal three phase supply (No internal auxiliary link)
  • Highly visible backlit display from all angles
  • Programmable reverse flow for right/left side of breaker CT installation.
  • Built in Modbus and Pulsed outputs
Displayed Parameters
  • Phase to Neutral Voltage (V)
  • Phase to Phase Voltage (V)
  • Phase Current (A)
  • Voltage Total Harmonic Distortion (U%THD)
  • Current Total Harmonic Distortion (I%THD)
  • Frequency (Hz)
  • Power Factor (PF)
  • Current Max Demand (MD A)
  • Power Max Demand (MD kW)
  • Active Power (kW)
  • Reactive Power (kVAr)
  • Apparent Power (kVA)
  • Import Active Energy (kWh)
  • Export Active Energy (kWh)
  • Total Active Energy (kWh)
  • Import Reactive Energy (kVArh)
  • Export Reactive Energy (kVArh)
  • Total Reactive Energy (kVArh)
Product information

The Smart X96-1 is a high accuracy multifunction power meter that has been developed with plug in connections for the current transformer and mains voltage supply inputs. This negates the need to traditional wire into the meter and saving 90% on labour as well as eliminating wiring errors. Configurable for 1p2w, 3p3w and 3p4w systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power and Current Demand (Sliding and fix scale options), Power Factor, imported and exported kWh, Individual harmonics, Phase sequence and a phase summary page.  It is one of the most user-friendly multifunction power meters in the market form installation to end client use.

It is typical in most installations that the current transformers are mounted on the left-hand side of the breaker so P1 is facing the correct way. However, it is also possible to mount the current transformer on the right-hand side with P2 facing the breaker. This is possible due to the meter having the option to reverse the flow to correct this type of application.

The SMART X96-1 requires mains voltage inputs and external current transformers in order to operate, it is self-supplied via a internal three phase transformer, this means if any of the phases fail the meter will remain powered and does not require an external auxiliary supply. The Smart X96-1 meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.

Certifications & Standards
  • MID: EN50470-1 & EN50470-3 Class 0.5
  • EMC: EN61326-1 & EN61326-2-3
  • LVD: EN61010-1 & EN61010-2-3
  • IEC/EN62052-11:2003 Class 0.5s
