SDM630MCT-RJ

EasyClick Plug & Play Metering

Three Phase EasyClick

Product videos
SDM630MCT-RJ

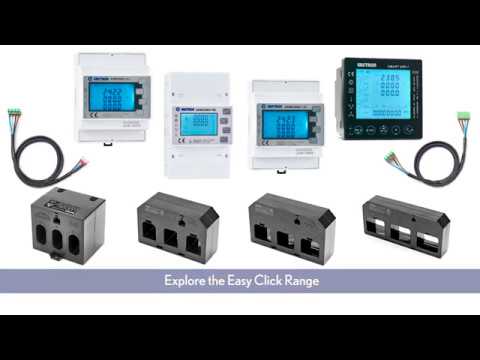

How to install and set up the SDM630MCT-RJ Easy Click meter

Features
  • EasyClick technology for plug in current transformer and mains voltage connection
  • Elimination of wiring errors & labour saving
  • Designed and tested in the UK
  • Highly visible backlit display from all angles
  • Programmable reverse flow for right/left side of breaker CT installation
  • Built in Modbus and Pulsed outputs
Displayed Parameters
  • Phase to Neutral Voltage (V)
  • Phase Current (A)
  • Voltage Total Harmonic Distortion (U%THD)
  • Current Total Harmonic Distortion (I%THD)
  • Frequency (Hz)
  • Power Factor (PF)
  • Current Max Demand (MD A)
  • Power Max Demand (MD kW)
  • Active Power (kW)
  • Reactive Power (kVAr)
  • Apparent Power (kVA)
  • Import Active Energy (kWh)
  • Export Active Energy (kWh)
  • Total Active Energy (kWh)
  • Import Reactive Energy (kVArh)
  • Export Reactive Energy (kVArh)
  • Total Reactive Energy (kVArh)
Product information

The SDM630MCT-RJ is a high accuracy multifunction power meter that has been developed with plug in connections for the current transformer and mains voltage supply inputs. This negates the need to traditional wire into the meter and saving 90% on labour as well as eliminating wiring errors. Configurable 1p2w or 3p4w systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power and Current Demand, Power Factor, imported and exported kWh and total harmonics. It is one of the most user-friendly multifunction power meters in the market form installation to end client use.

It is typical in most installations that the current transformers are mounted on the left-hand side of the breaker so P1 is facing the correct way. However, it is also possible to mount the current transformer on the right-hand side with P2 facing the breaker. This is possible due to the meter having the option to reverse the flow to correct this type of application.

The SDM630MCT-RJ requires mains voltage inputs and external current transformers in order to operate. The SDM630MCT-RJ meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.

Certifications & Standards
  • EMC: EN61326-1 & EN61326-2-3
  • LVD: EN61010-1 & EN61010-2-3
